Accessory-Different Node Connectors

L-, T- and X-Node connector are available for assembling and combining the linear lights in a myriad of variants, it is fit for continuous-row system.

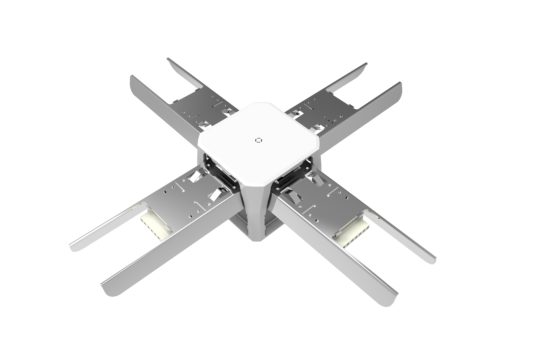

Node Connector

Node Connector for LED Linear Luminaire

L, T and X  Node, 5/7/11  2.5mm2 core wiring choice
Black, white and silver finish color for selection.
Aluminum material

Node Connector Parameter
		Type	Wiring Diameter	Pre-wired		Color
			2.5mm2	5wires		White
		L-Node	2.5mm2	7wires		Silver
			2.5mm2	11wires		Black
			2.5mm2	5wires		White
		T-Node	2.5mm2	7wires		Silver
			2.5mm2	11wires		Black
			2.5mm2	5wires		White
		X-Node	2.5mm2	7wires		Silver
			2.5mm2	11wires		Black

		Type	Node Type	Feed Type	Wires	Color
		N=Node	L= L-Node	1=1 feed-in, 1 feed-out	5= 5wires	WH=White
				2=central feed-in,2 feed-out
			T= T-Node	3=1 feed-in, 2 feed-out	7= 7wires	BK=Black
				4=central feed-in, 3 feed-out
			X= X-Node	5=1 feed-in, 3 feed-out	11= 11wires	SG=Silver
				6=central feed-in, 4 feed-out
	E.g: CSN/T2/7-SG stands for Coreshine,T- Node connector, central feed-in, two feed-out, 7 wire, silver color For different parameters, please order seperately.
