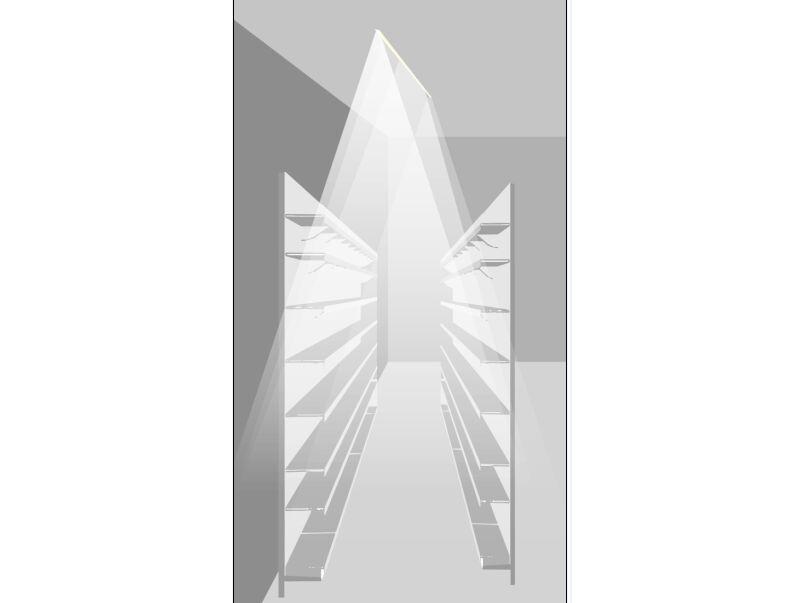

LED linear trunking system with Sharp angle Lens Applied to the shelving lighting in tight space such as Warehouse, Supermarket and Workshop.Ceiling height is 15m maximum.
|
LED Linear Luminaire for linear trunking with beaded lens |6 distributions options | 5/7/11 core wiring choice. | housing of aluminium profile, with black, white and silver finish color for selection. Lumen efficiency: 160lm/W Protection rating: IP20 Temperature range: -30°C…+40°C Service life: up to 50,000 h Warranty: 5 years |
 |
|
Luminaire Dimension
|
|||||||
| L (mm) | W (mm) | H2 (mm) | Wt. (g) | Qty/CTN | |||
|
|
|||||||
 |
0.6m | 568 | 73 | 37.8 | 980 | 5pcs | |
| 1.5m | 1414 | 73 | 37.8 | 2500 | 5pcs | ||
|
Luminaire Parameter
|
||||||||
| Power | LED Qty | Lumen | CRI | UGR | Extra Modular Option | |||
|
|
||||||||
Sharp Distribution – 20° |
0.6m | 16W | 72pcs | 2400lm | >80/>95 | 16 | / | |
| 26W | 120pcs | 3900lm | >80/>95 | 16 | / | |||
| 32W | 144pcs | 4800lm | >80/>95 | 16 | / | |||
|
|
||||||||
| 1.5m | 40W | 180pcs | 6000lm | >80/>95 | 16 | Dimming/Emergency
Motion Sensor |
||
| 65W | 300pcs | 9750lm | >80/>95 | 16 | Dimming/Emergency
Motion Sensor |
|||
| 80W | 360pcs | 12000lm | >80/>95 | 16 | Dimming/Emergency
Motion Sensor |
|||
| Order No. System | ||||||||||||||
| Type | Length | Wire | CT | Beam | Power(W) | Color | ||||||||
|
|
||||||||||||||
| CSL | / | 60=0.6M | — | 5 | / | 30=3000K | — | S=Sharp | / | 16 | / | WH-White |  |
|
| 15=1.5M | 7 | 40=4000K | N=Narrow | 26 | ||||||||||
| 11 | 50=5000K | W=Wide | 32 | BK-Black |  |
|||||||||
| 60=6000K | F=Flat | 40 | ||||||||||||
| SR=Right Asymmetric | 65 | SG-Silver |  |
|||||||||||
| SL=Left Asymmetric | 80 | |||||||||||||
| DS=Double Asymmetric | ||||||||||||||
| E.g: CSL/15-11/40-W/80/WH stands for 1.5M 80W luminaire with 4000K CT, Wide Beam, 11 wire, White color housing.
* For extra function ( like dimming & emergency ) modular, please order seperately. |
||||||||||||||
